Rate listing info and photo quality why?
Not rated yet
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Click on a photo below to see a much larger image.
Listing #265073
Please login/register to see the 3 other photo(s) in this listing.

Uhlmann C 100 Horizontal Cartoner
Listing #265073
EquipNet Tag #265079-1-1

Part of multi-equipment listing: Uhlmann UPS 300 Blister Packing and Cartonning Machinery
Listing Price:€80,000.00Seller's Acceptable Currency
All offers are submitted in Seller's Acceptable Currency



This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in Sweden.

Uhlmann C 100 Horizontal Cartoner, for cartonning blister packs into Reverse Tuck cartons at upto 100 Cartons/min.

  • Carton Size range, from Minimum 30 x 15 x 70mm high (AxBxH), upto a maximum of 100 x 85 x 150mm high (AxBxH)
  • The machine is fed automatically from its blister feed magazine
  • The machine comes complete with GUK Leaflet folder from stack, with 4 folding pockets
  • The machine is fitted with a Laetus Argus 4 bar code reader for both the leaflets and cartons, linked to an automatic rejection system.
  • The machine is fitted with an Emboss coder for both sides of the carton.
  • The Cartons are Reverse Tuck closed.
  • The machine weighs 700 kgs.

    • Manufacturer: Uhlmann

    Equipment Specifications
    Year1990
    ModelC-100
    Capacity Speed100 CPM
    Product Sizing30x15x70mm high upto 100x85x150mm high
    Products RunCartons
    Air Requirements6 BAR
    Estimated Shipping Weight1 Tonne
    Length2.5 M
    Width1.3 M
    Height1.66 M
    Voltage220/380 VOLTS
    Frequency50 HERTZ
    Phase3+1
    Product HandlingHORIZONTAL
    Product LoadingAUTOMATIC
    ClosureREVERSE TUCK
    Method of Code DaterEMBOSS
    Line MotionCONTINUOUS
    AccessoriesLEAFLET FEEDER-PREFOLDED
    Recommended Packaging FormCUSTOM PALLET

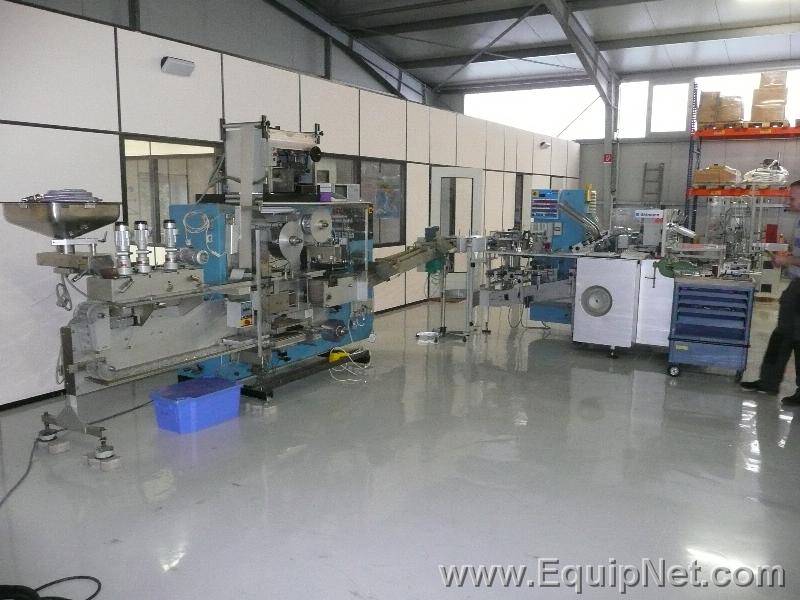

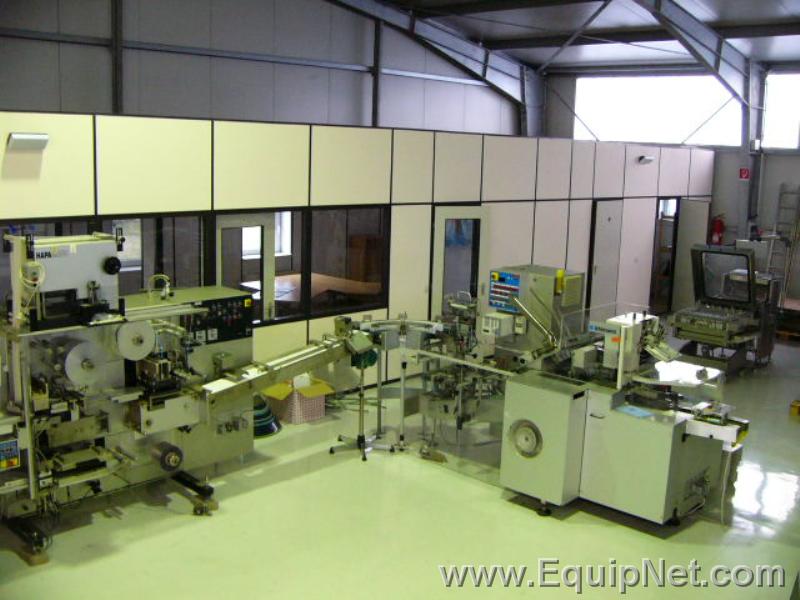

    Uhlmann UPS 300 Blister Packing and Cartonning Machinery

    Uhlmann UPS 300 Blister Packing Machine, and a Uhlmann C-100 Cartonner

  • This Machinery has all been serviced and overhauled by Hauser, Germany, which included the following procedures;

    1) Machine cleaning, servicing, preparing for production, and workshop testing
    2) Replacement of discharge belting ( Belt 1)
    3) Replacement of inclined belting ( Belt 2)
    4) Replacement of 90 degree discharge transfer bend conveyor belting
    5) Electrical interconnection of the Uhlmann UPS 300 & C-100 machines
    6) Painting of both machines in 'Bosch Silver' paint.

  • The Uhlmann UPS 300 & C-100 machinery comes complete with the following German, (Btriebsanleitung) Operating Instructions documentation;

    1) (Allgemeine Informationen) General Information
    2) (Funktionsbeschreibung der Maschine) Description of Operation
    3) (Elektrounterlagen) Electrical Data
    4) (Storung und deren Behebung) Servicing
    5) (Ersatzteillisten) Spare parts lists








    • Equipment Specifications
    Year1990
    ModelUPS 300 & C-100
    Serial Number531
    Product Sizing
    Products RunTablets, vials, ampoules
    Air Requirements6 BAR
    Estimated Shipping Weight2 Tonnes
    Length5.5 M
    Width1.3 M
    Height1.66 M
    Voltage220/380 VOLTS
    Frequency50 HERTZ
    Phase3+1
    FeederAUTOMATIC
    Product(s)FREE FLOW
    Recommended Packaging FormCUSTOM PALLET
    Listing #265073
    Please login/register to see the 2 other photo(s) in this listing.

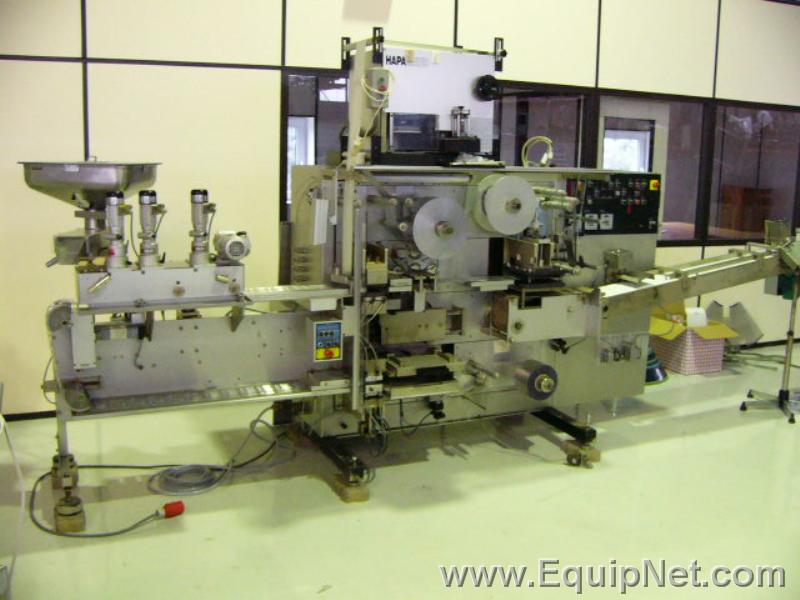

    Uhlmann UPS 300 Blister Packing Machine

    Uhlmann UPS 300 Blister Packing Machine, operating upto a speed of 30 Strokes/min
  • Blister format = 100mm index x 150mm wide, producing a forming depth of 18.5mm which is suitable for use with Vials / Ampoules
  • Blister thermoforming material = PVC, PVC/PVDC, and PVC/PFC, which can be lidded by heatsealable materials, from Aluminium, Paper, and PVC
  • Maximum width of Thermoforming material = 170mm
  • The net weight of the machine = 850 kgs.
  • The machine comes complete with the following extra items;
    1) HAPA Hapamatic 203 Foil Printer, age 1989.
    2) Lynx Scanware missing tablet detection system, using a black & white camera system.
    3) Brush Box for tablets / capsules
    4) 90 degree transfer conveyor to Uhlmann C-100 Cartonner.
  • The Machine has been fully restored by Hauser, Germany, which included the following


    • Equipment Specifications
    Year1990
    ModelUPS 300
    Serial Number531
    Products RunTablets, Vials, Ampoules
    Air Requirements6 BAR
    Estimated Shipping Weight1 Tonne
    Length3 M
    Width1 M
    Height1.47 M
    Voltage220/380 VOLTS
    Frequency50 HERTZ
    Phase3+1
    Recommended Packaging FormCUSTOM PALLET
    Listing #265073
    Please login/register to see the 16 other photo(s) in this listing.
