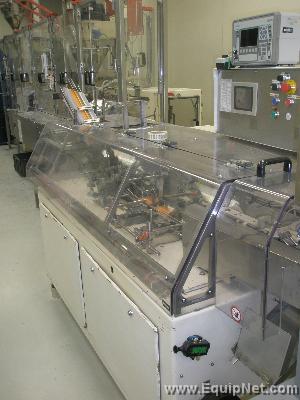

Volpak, Horizontal Cartonner, fitted with a Pre-folded vertical Leaflet Inserter, with Laetus unit

Listing #197052

EquipNet Tag #11139577

Part of multi-equipment listing: Volpak, Sachet Packing line, rated to pack 120 sachets per min

Listing Price:	€17,100.00	Seller's Acceptable Currency
All offers are submitted in Seller's Acceptable Currency

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in France.

Volpak, Horizontal Cartonner, fitted with a Pre-folded vertical Leaflet Inserter, and Laetus Argus Unit for checking / automatic rejection, via pneumatically operated reject flap at dicharge of m/c.

Cartons are 'Aeroplane' style, tuck closed, and are packed at rate of 20 cartons/min.

If M/c is bought separately then Listing Price = Euro's 12,000.

Please Note; This M/c will be available from End September 2009

Manufacturer: Volpak

Please Note: The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.

Please Note: This machine is still installed at the seller's facility. A scope of work agreed to by the seller may be required before any removal operations can begin.

Equipment Specifications

Year	1989
Model	PAK 1300 Series 10
Serial Number	1300.069
Capacity Speed	20 CPM
Product Sizing	1005mm x 20mm x 65mm high
Products Run	250 Mg Cartons
Air Requirements	6 BAR
Estimated Shipping Weight	1 Tonne
Length	2.6 M
Width	1.3 M
Height	1.8 M
Voltage	220 VOLTS
Frequency	50 HERTZ
Phase	1
Current	4 Amps
Product Handling	HORIZONTAL
Product Loading	AUTOMATIC
Closure	STRAIGHT TUCK
Method of Code Dater	INK JET
Line Motion	CONTINUOUS
Accessories	LEAFLET FEEDER-PREFOLDED

Volpak Sachet Packing Line

Volpak, Sachet Packing line, rated to pack 120 sachets/min

Please Note:This Packing Line will be available from end September 2009.

Equipment Specifications

Year
Capacity Size	0 BAR
Voltage	VOLTS
Frequency	50/60 HERTZ
Capacity Speed	120 BPM
Estimated Shipping Weight	5.4 Tons
Serial Number
Model
Height	3.3 M
Length	15 M
Width	2 M
Recommended Packaging Form	CUSTOM PALLET

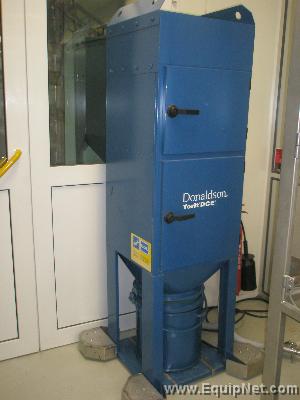

Donaldson Torit DCE, UMA 72 G1, Dust Extractor / Collector, Mobile, with Collection Bucket

Donaldson Torit DCE, UMA 72 G1, Dust Extractor / Collector, Mobile, with manually unloaded Collection Bucket.

Mounted on 4 castors supported on cantilevered brackets.

Controlled by an attached DCE Unimaster 06008 Control Unit, which controls 0.75 Kw Extraction Fan unit.

If this m/c is purchased separately its listing price is Euro's 500.00

Please Note; This m/c is available from End September 2009.

Equipment Specifications

Year	2003
Model	UMA 72 G1
Serial Number	00005069
Estimated Shipping Weight	139 Kgs
Voltage	380 VOLTS
Frequency	50 HERTZ
Phase	3
Length	0.85 M
Width	0.85 M
Height	2.1 M
Material of Construction	CARBON STEEL
Dust Collector Type	CARTRIDGE
Type of Discharge	SHAKER TYPE

Please login/register to see the 2 other photo(s) in this listing.

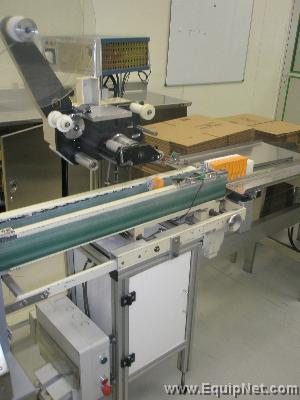

Pilot, overhead Pressure Sensitive Labeller, mounted over seperate Carton upending Conveyor unit

Pilot, overhead Pressure Sensitive Labeller, mounted over seperate Carton upending Conveyor unit.

Pilot overhead Labeller unit mounted on its own support stand, mounted on 4 feet.

The seperate lower Twin side conveyor carton upending unit, is also mounted on 4 feet, and measures 1m x 0.45m x 1m high, and weighs approx 100 Kgs.

The conveyor then discharges the vertically labeled cartons onto a Stainless Steel Manual Collating / Case Packing Table, measuring 1.4m x 0.7m x 0.95m high.

If M/c is bought separately then Listing Price = Euro's 2,000.

Please Note; These m/c's will be available from End September 2009.

Equipment Specifications

Model	500
Serial Number	981 GO
Estimated Shipping Weight	100 Kgs
Length	0.9 M
Width	0.5 M
Height	1.8 M
Voltage	220 VOLTS
Frequency	50 HERTZ
Phase	1

Please login/register to see the 3 other photo(s) in this listing.

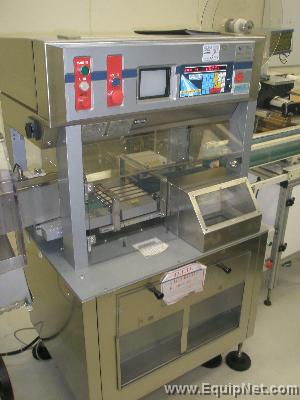

Prisma In Line Stainless Steel Checkweigher, fitted with automatic double pusher rejection system

Prisma In Line Stainless Steel Checkweigher, fitted with automatic pneumatic double pusher rejection system.

Floor mounted on 4 feet.

Weighbridge belt measures 200mm long x 150mm wide.

If M/c is bought separately then Listing Price = Euro's 3,000.

Please Note; This m/c is available from End September 2009.

Equipment Specifications

Year	1998
Model	05 C3
Serial Number	182801
Air Requirements	6 BAR
Estimated Shipping Weight	300 Kgs
Length	0.9 M
Width	0.7 M
Height	1.55 M
Voltage	220 VOLTS
Frequency	50 HERTZ
Phase	1
Current	0.8 Kw
Auto Reject	Y

Please login/register to see the 3 other photo(s) in this listing.

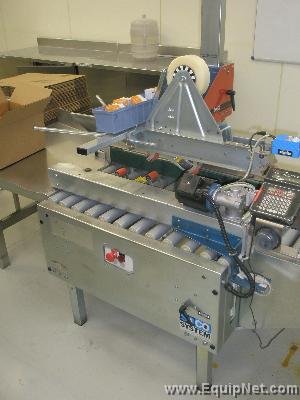

Soco, Top & Bottom Case Taper, complete with fitted MSSC Inkjet Taped Case Datecoder unit

mounted on 4 legs, and fitted with a Gravity Roller Discharge Conveyor.

If M/c is bought separately then Listing Price = Euro's 500.

Please Note; this m/c will be available from End September 2009.

Equipment Specifications

Year	1987
Model	T-10
Serial Number	672-35
Estimated Shipping Weight	200 Kgs
Length	1.9 M
Width	0.9 M
Height	1.6 M
Voltage	220 VOLTS
Frequency	50 HERTZ
Phase	1

Please login/register to see the 3 other photo(s) in this listing.

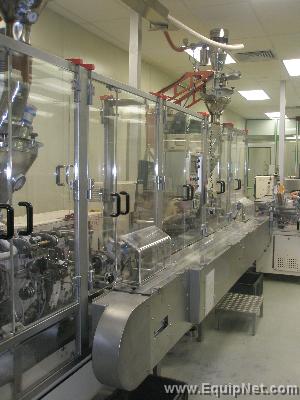

Volpak, Vertical Twin Sachet Filling & Sealing M/c, No 1 of 2, feeding common discharge conveyor

Volpak, Vertical Twin Headed Sachet Filling & Sealing M/c, No 1 of 2, feeding common pocket discharge conveyor.

The twin Sachet Filling head, Volpak, Type 08 303, Series 10, Serial No 303.005, 1988 vintage, 220v 50Hz, Single Phase power, fill 2 Sachets simultaneously, each with 0.606g of powder, at the combined rate of 60 Sachets/min.

The twin Sachet Filling heads are each fed by powder from an overhead mounted Vacuum Transfer system, which sucks the powder on demand from an external mounted Bulk Powder S/s Tote Bin.

The complete Twin Filling Head system is capable of being hydraulically lifted clear of the Sachet filling area, for setting up, maintenance, & cleaning activities.

The Sachet filler is skid mounted, supported on 5 feet, and isfully guarded by later installed surrounding S/s framed macrolon interlocked guarding system.

The M/c filling operation is constantly checked by a Laetus Argus checking system linked to an automated pneumatic reject flap system, fitted to the filled sachet pick & place mechanism.

If M/c is bought separately then Listing Price = Euro's 10,000.

Please Note; This M/c will be available from End September 2009

Equipment Specifications

Year	1989
Model	S.140.D Series 10
Serial Number	142.001
Product Sizing	2 x 50mm x 60mm tall
Products Run	Sachets
Length	3.1 M
Width	1 M
Height	3.2 M
Voltage	220 VOLTS
Frequency	50 HERTZ
Phase	1
Current	7 Amps
Air Requirements	6 BAR
Estimated Shipping Weight	1.5 Tonnes

Please login/register to see the 7 other photo(s) in this listing.

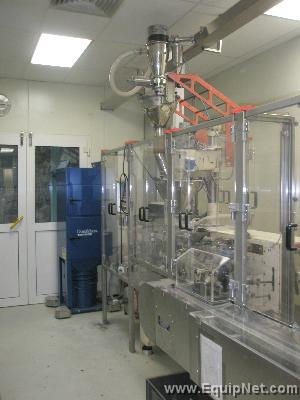

Volpak, Vertical Twin Sachet Filling & Sealing M/c, No 2 of 2, feeding common discharge conveyor

Volpak, Vertical Twin Headed Sachet Filling & Sealing M/c, No 2 of 2, feeding common pocket discharge conveyor.

The twin Sachet Filling heads are each fed by powder from an overhead mounted Vacuum Transfer system, which sucks the powder on demand from an external mounted Bulk Powder S/s Tote Bin.

The complete Twin Filling Head system is capable of being hydraulically lifted clear of the Sachet filling area, for setting up, maintenance, & cleaning activities.

The Sachet filler is skid mounted, supported on 5 feet, and isfully guarded by later installed surrounding S/s framed macrolon interlocked guarding system.

The M/c filling operation is constantly checked by a Laetus Argus checking system linked to an automated pneumatic reject flap system, fitted to the filled sachet pick & place mechanism.

This Sachet Filler comes complete with the attached double pocket Sachet Incrementing Discharge Conveyor, which moves each time a pocket has been filled with 6 off double filled Sachets. The discharge conveyor has an adjustable centre guide for differing sized Sachets, and is covered by an interlocked Macrolon guard.

If M/c is bought separately then Listing Price = Euro's 10,000.

Please Note; This M/c will be available from End September 2009

Equipment Specifications

Year	1989
Model	S.140.D Series 10
Serial Number	142.003
Product Sizing	2 x 50mm x 60mm tall
Products Run	Sachets
Length	3.3 M
Width	1.2 M
Height	3.2 M
Voltage	380 VOLTS
Frequency	50 HERTZ
Phase	3
Current	8 Amps
Air Requirements	6 BAR
Estimated Shipping Weight	2 Tonnes
